We built a tool for a steel fabricator that generated unique steel plates, placed them into an existing structural model, and produced CNC-ready files.
A steel fabricator needed more than 150 unique steel plates modeled into an existing structural model and prepared for fabrication. Doing it manually would have taken weeks.
We built a design tool that generated the steel plating from scratch, placed it into the existing model, and exported CNC-ready fabrication files.

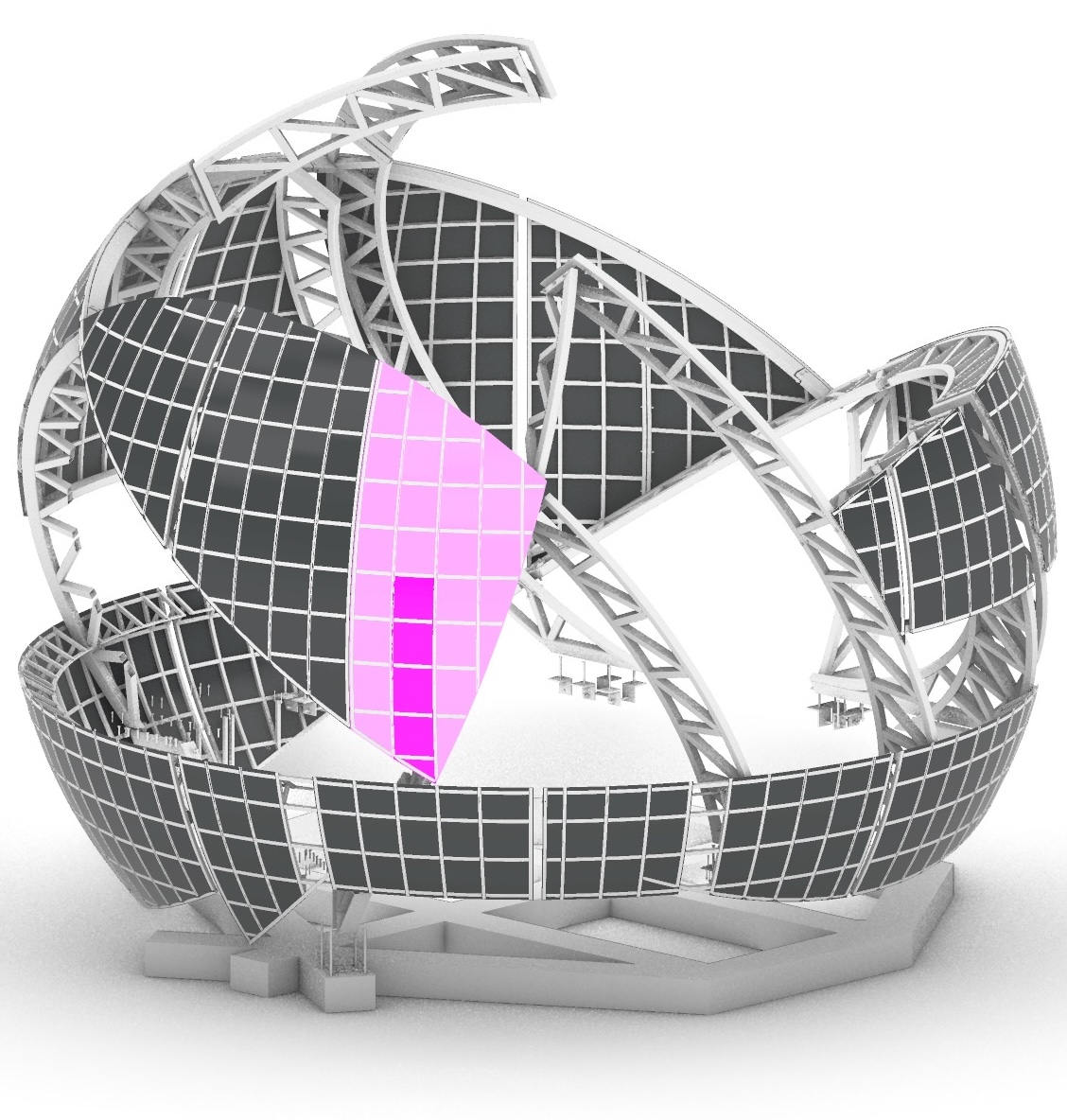

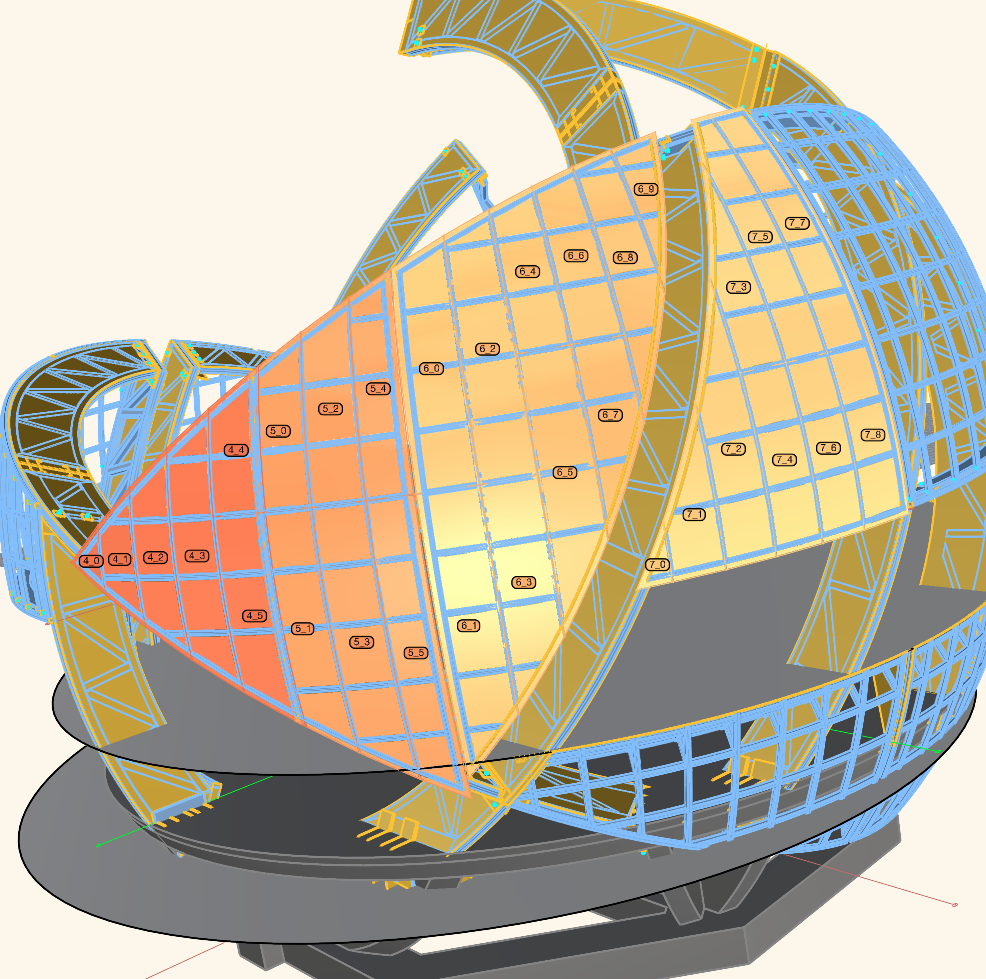

A steel fabricator had a 3D structural model, but still needed the steel plating modeled and prepared for fabrication.
Doing that by hand would have meant modeling, adjusting, labeling, and drawing more than 150 unique plates one by one.

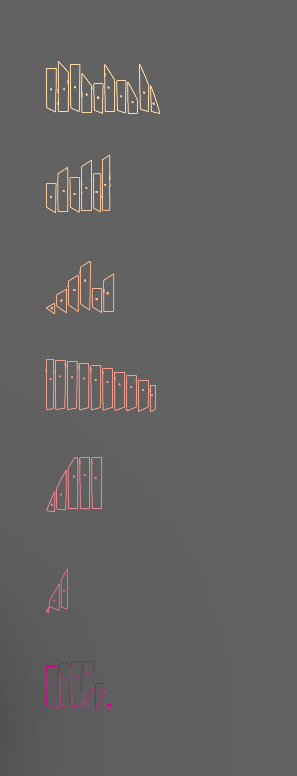

We built a design tool that generated the plates from scratch, placed them into the existing model, and produced CNC-ready files.
A small automation project removed weeks of manual modeling and drafting while keeping the generated plates tied to the source model.
